  • 280G-350G PVC Clear Crystal &Transparent Tarpaulin For Case Bag

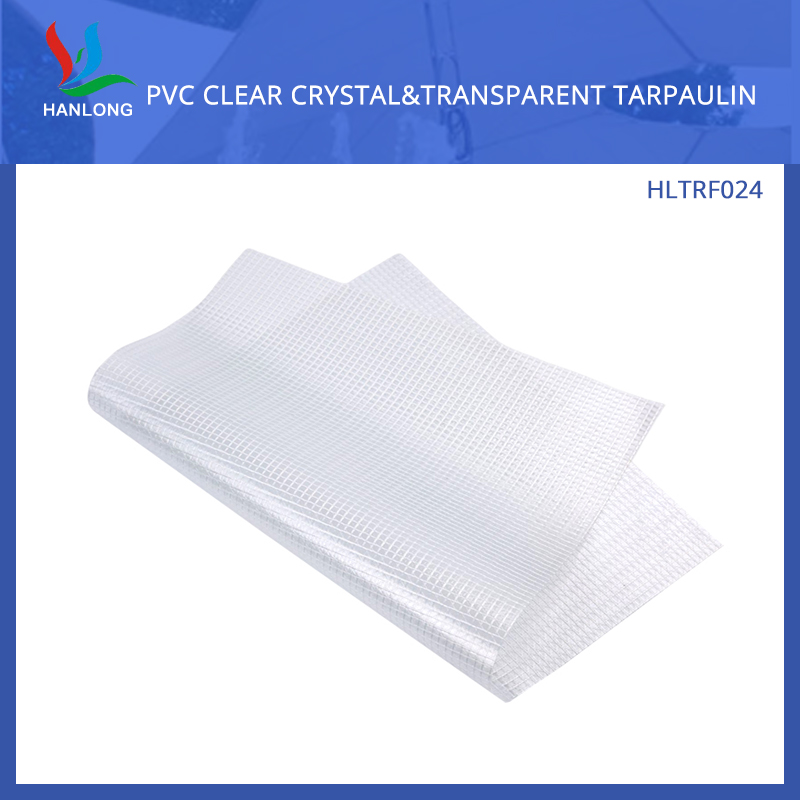

280G-350G PVC Clear Crystal &Transparent Tarpaulin For Case Bag

The 280G-350G PVC Clear Crystal is a form of PVC cloth this is obvious and crystal-clean. It has a weight consistent with square meter starting from 280 grams to 350 grams, indicating its thickness and durability. This PVC clean crystal fabric is usually used for packages which includes see-thru curtains, desk covers, and other obvious protective obstacles. It gives exquisite readability at the same time as providing protection in opposition to dust, dust, and moisture.

Contact Us
HLTRF024 HANGLONG

PVC Clear Crystal & Transparent Tarpaulin For Case Bag

Haining, Zhejiang, China
280-350
GSM weight range
750-800k
SQM monthly capacity
15-20
days lead time / 20GP
1-3.2
meters width

Transparent PVC tarpaulin based on 300D x 300D polyester scrim with 9 x 9 yarn count. Crystal clear optical properties combined with PVC formulation for case bag windows, inspection panels, and see-through enclosures. Weight range 280 to 350 grams per square meter allows selection between lighter flexible films and heavier abrasion-resistant grades. The base fabric provides tear strength while the clear PVC compound maintains transparency above 85% light transmission for unpackaged visibility. Suitable for bag manufacturing where product visibility is required without opening the case.

Base Construction

Scrim specification 300D x 300D polyester
Mesh count 9 x 9 threads per inch
Coating system Clear PVC (phthalate-free upon request)
Clarity rating Transparent grade, no haze in unprinted areas

Physical Properties

Tensile strength (warp) ≥ 550 N / 5cm
Tensile strength (weft) ≥ 520 N / 5cm
Tear strength (trapezoid) Warp ≥ 70 N, weft ≥ 65 N
Low temperature flexibility Pass at -10°C (no cracking)

Intended Applications

Transparent case bag windows
Luggage ID pockets
Backpack map/view panels
Tool bag inspection sleeves
Sport equipment covers with visibility
Retail display bags
Medical equipment see-through covers
Protective sleeves for documents

Weight Selection Guide

Weight range
Thickness reference
Recommended use case
280 - 300 GSM
0.28 - 0.32 mm approx.
Lightweight bag windows, soft-sided cases, map pockets
310 - 330 GSM
0.33 - 0.37 mm approx.
Medium duty luggage panels, tool bag inserts
340 - 350 GSM
0.38 - 0.42 mm approx.
Heavy duty case covers, industrial see-through enclosures

Fabrication & Seaming

Welding methods

High-frequency welding produces clear seams without discoloration. Hot air welding with PVC strip reinforcement also suitable. Recommended weld temperature: 450°C - 520°C for 2-3 seconds depending on thickness.

Stitching guidelines

Use UV-stabilized polyester thread size V69 or V92. Needle size 18-22 with medium ball point to prevent film tearing. Stitch density: 4-6 stitches per cm for seam strength.

Printing & marking

Screen printing with PVC-based transparent inks. Reverse printing for protected graphics. Digital printing possible with pretreatment. For direct marking use solvent-resistant markers test on sample first.

Technical Q&A

Does the transparent tarpaulin yellow over time?
PVC clarity retention depends on UV stabilizer package. Standard formulation provides 12-18 months outdoor use before minor yellowing. For extended outdoor use specify UV-stabilized clear grade (add 5-7% to unit price).
Can anti-fog properties be added?
Anti-fog surface treatment available for interior-facing applications such as camera case windows or medical bags where condensation occurs. Specify anti-fog additive during order. Minimum quantity applies.
How to clean and maintain transparent sections?
Clean with mild soap and soft cloth. Avoid abrasive cleaners, ammonia-based products, and brushes that cause micro-scratches. Store rolled material on core in cool dry area away from direct UV exposure.
What is the visible light transmission percentage?
Clear grade transmits 85-90% visible light at 300GSM thickness. Lower thickness transmits higher percentage. Material has slight matte surface to reduce glare while maintaining see-through function.

Color customization: OEM color matching available for tinted transparent films (blue, smoke, amber, green). Standard lead time for color development: 5-7 working days. Minimum order quantity for custom transparent colors: contact commercial department. Samples of clear grade provided within 3 working days for quality approval. Production rolls wrapped with protective PE film to prevent surface scratching during transit.

  • Benefit Description:

  • ► Surface Matt/Glossy Finish Available.

    ► Any Customizable Gram Weight Optional.

    ► Package Is Paper Tube + Craft Paper Available.

    ► Excellent Tensile Strength, Tear resistance, Extremely Soft Hand Feeling.

    ► UV Resistance,Waterproof, Flame Retardant, Anti-Bacterial, Anti-Mildew, Oil Resistant Available.

    ► Be Widely Sewn Or High-Frequency Welded In Curtain, Home Textile, Case Bag, Outdoor-Tent, Outdoor Etc.

Product Description:

Product Name

PVC Clear Crystal&Transparent Tarpaulin For Case Bag

Item No#.

HLTRF024

Brand Name

HANGLONG

Place Of Orinal

HAINING,ZHEJIANG,CHINA

Base Fabric

 300DX300D 9X9

Weight/GSM

280-350G

Available Width

1-3.2M

Available Color

OEM Color

Delivery Time

15-20DAYS/20GP

Production Capacity

750-800,000SQM/Monthly
