  • Waterproof Polyester PVC Outdoor Bag Fabric 500DX500D 18X16 400G

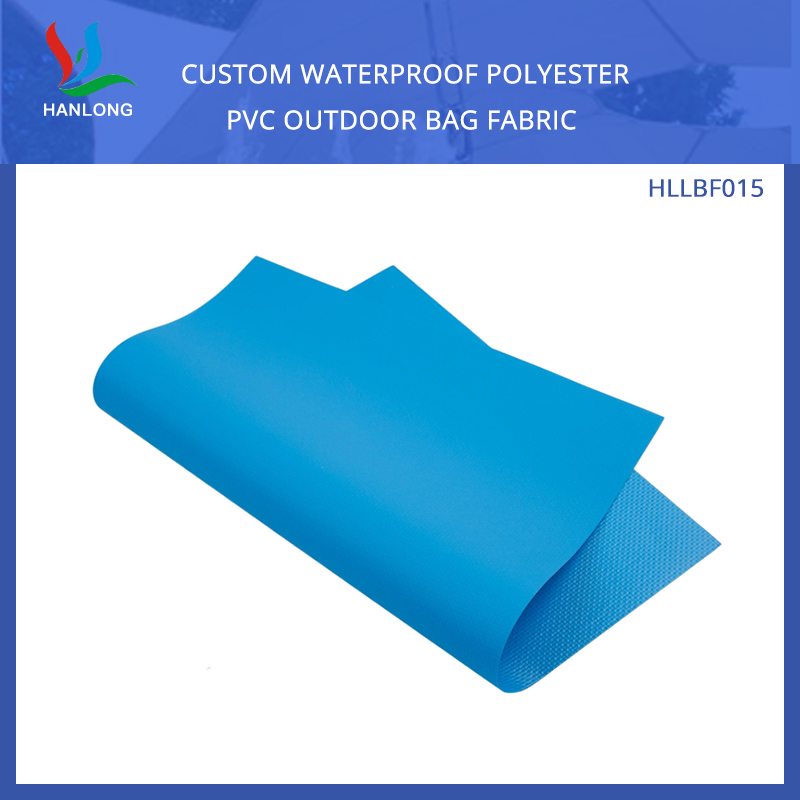

Waterproof Polyester PVC Outdoor Bag Fabric 500DX500D 18X16 400G

Waterproof polyester PVC outdoor bag fabric is a type of material commonly used for making outdoor bags, backpacks, and other gear designed for outdoor activities. This fabric is created by combining two primary materials: polyester and PVC (Polyvinyl Chloride).

Contact Us

Item No. HLLBF015

HANGLONG

Haining, Zhejiang, China

Product Overview

Custom Waterproof Polyester PVC Outdoor Bag Fabric with specification 500D*500D and 18*16 yarn count. This material combines a high-density polyester base with a PVC coating system designed for bag manufacturing requiring water resistance and structural retention. The 500 denier warp and weft yarns provide balanced mechanical properties, while the 18 by 16 threads per inch count yields a closed fabric surface suitable for printing and lamination. Weight range of 400 to 500 grams per square meter indicates material density selection for different bag types from lightweight totes to heavy-duty transport bags. The PVC coating adds water repellency and surface cleanability without altering the fabric's handling characteristics for cutting and sewing operations.

Technical Parameters

  • Base Fabric500D x 500D 18 x 16
  • Weight Range400 - 500 gsm
  • Available Width1.0 - 3.2 meters
  • Coating TypePVC (polyvinyl chloride)
  • Water ResistanceHydrostatic pressure ≥ 2000mm

Production & Supply

  • Monthly Output750,000 - 850,000 sqm
  • Lead Time10 - 15 days per 20GP container
  • Color ServiceOEM custom matching
  • Minimum OrderContact sales for MOQ by color

Application Fields

Outdoor backpacks Cooler bags Tool bags Tent carry bags Equipment cases Sport duffels Roll-top dry bags Industrial storage bags

The fabric is specified for bag constructions requiring water-shedding properties without internal liners. Used in outdoor gear, promotional bag manufacturing, and industrial packaging where abrasion resistance and seam strength are required.

Material Properties

Waterproofing
PVC coating provides continuous barrier. Sealed seams required for full water tightness. Surface water beads and rolls off.
Tensile strength
500D base yarn with 18x16 construction delivers warp tensile ≥ 800 N/5cm, weft tensile ≥ 750 N/5cm per ASTM D5034.
Tear propagation
Trapezoid tear strength: warp ≥ 90 N, weft ≥ 85 N. PVC coating limits yarn slippage at cut edges.
Flexibility
Remains pliable at 0°C to 40°C. Cold crack temperature tested at -15°C without surface fracture.

Fabrication Compatibility

  • Die-cutting and rotary cutting for bag panels
  • High-frequency welding for seams and reinforcement
  • Hot-air sealing for taped constructions
  • Screen printing and digital printing with PVC inks
  • Stitching with UV-resistant polyester or nylon thread
  • Eyelet and zipper tape attachment without coating delamination

Color & Customization

OEM color matching available. Standard lead time for color development: 5-7 working days for lab dip. Production colors are matched to Pantone or physical swatch references. Minimum order quantity per custom color is negotiated based on total yardage. Colorfastness to light tested per AATCC 16 (Grade 4 minimum). Colorfastness to crocking per AATCC 8 (dry: Grade 4, wet: Grade 3-4).

Technical Notes & Common Questions

What is the difference between 400G and 500G options?
400GSM fabric offers more flexibility for foldable bag designs such as grocery totes and light backpacks. 500GSM provides increased puncture resistance for heavy-duty bags, equipment covers, and industrial applications. Both options maintain the same 500D base yarn construction; weight difference comes from PVC coating thickness.
Can this fabric be printed with logos?
Yes. The PVC coated surface accepts screen printing using PVC-based inks. Digital printing is possible with pretreatment. For long-term outdoor exposure, recommend screen printing with UV-stable inks. Test adhesion before full production runs.
How to clean finished bags made from this fabric?
Wipe with damp cloth using mild soap. For deeper cleaning, use soft brush and water diluted with non-abrasive cleaner. Avoid acetone, toluene, or chlorinated solvents which soften PVC coating. Air dry away from direct high heat sources.
What seam construction is recommended for waterproof bags?
For water-resistant seams: double-stitched with folded edge. For waterproof seams: high-frequency welded construction or heat-sealed tape over stitched seams. The fabric itself is waterproof; seam method determines final water entry point.
Roll dimensions and packaging
Standard roll width: 1.5m to 2.0m (custom widths available 1.0-3.2m). Roll length: typically 50-100 meters depending on weight. Rolls wrapped with PE film and placed on pallets for container loading. 20GP container holds approximately 20,000-25,000 linear meters at 1.5m width.

Production facility operates with ISO 9001:2015 quality management. Material testing available upon request: tensile, tear, adhesion, hydrostatic resistance, flammability (ASTM D6413), and UV exposure (ASTM G154). Samples provided within 3-5 working days for quality approval.

  • Benefit Description:

  • ►Blockout Performance Available.

    ►Surface Matt/Glossy Finish Available.

    ►Any Customizable Gram Weight Optional.

    ►Package Is Paper Tube + Craft Paper Available.

    ►Any Customized Solid Color/Printed Pattern Or Color Optional.

    ►Excellent Tensile Strength, Tear resistance, Extremely Soft Hand Feeling.

    ►UV Resistance,Waterproof, Flame Retardant, Anti-Bacterial, Anti-Mildew, Oil Resistant Available.

    ►Be Widely Sewn Or High-Frequency Welded In Various Luggages,Waterproof Bags,Cart Bags,Take Out Bags & Luggages etc.

Product Description:

Product Name

Custom Waterproof Polyester PVC Outdoor Bag Fabric 500D*500D 18*16  400G

Item No#.

HLLBF015

Brand Name

HANGLONG

Place Of Orinal

HAINING,ZHEJIANG,CHINA

Base Fabric

500DX500D 18X16

Weight/GSM

400-500G

Available Width

1-3.2M

Available Color

OEM Color

Delivery Time

10-15DAYS/20GP

Production Capacity

750-850,000SQM/Monthly
