Custom PVC Light Blue Water Ripple Design Swimming Pool Vinyl Liner Suppliers, Company

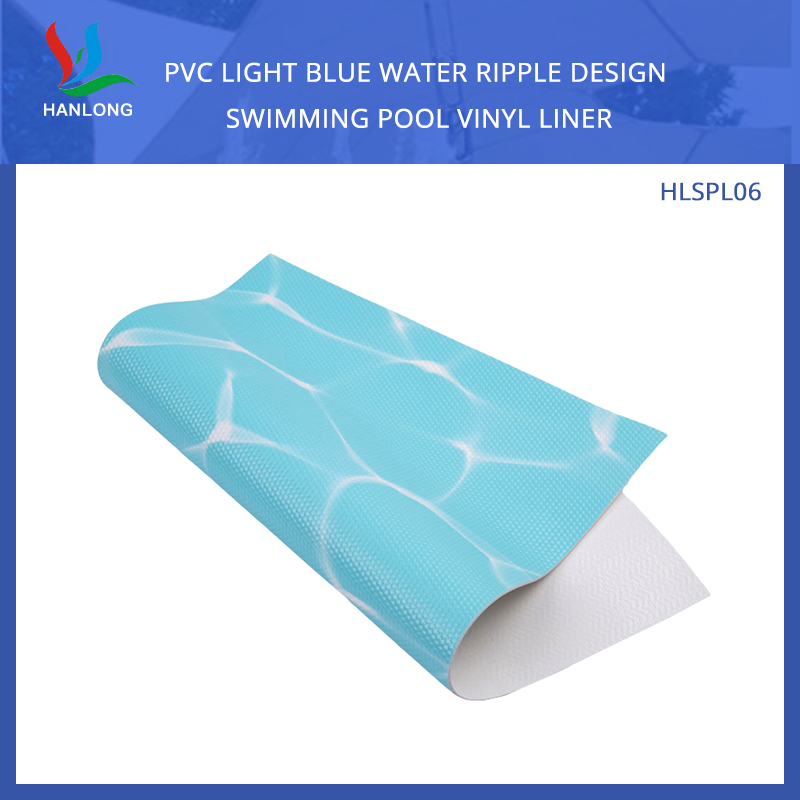

PVC Light Blue Water Ripple Design Swimming Pool Vinyl Liner

PVC Light Blue Water Ripple Design Swimming Pool Vinyl Liner is made of high-quality PVC material, which is durable and corrosion-resistant. It can effectively resist the erosion of sunlight and chlorine water and has a long service life. The unique light blue water ripple texture creates a fresh and natural visual effect for the swimming pool and enhances the overall beauty. The product is easy to install, with precise size, can perfectly fit the inner wall of the swimming pool, and has good sealing to prevent leakage.

General Properties	Unit	Method	Typical Value
Surface	g/m2	EN ISO 1849-2	1850 +/- 5%
Water Absorbtion	% (Weight)	EN ISO 62 Method 1	≤ 1
Available Width	mm		1500-1830
Physical properties	Unit	Method	Typical Value
Thickness Over Emboss	mm	EN 1849-2	1,5 +/-5%
Elongation at Break	%	EN 12311-2Method A	15 ≤ E ≤ 30
Tensile strength at Break	N/50mm	EN 12311-2Method A	≥ 1100
Peel Resistance	N/50mm	EN 12316-2	≥ 80
Tear Strength	N	EN 12310-2	≥ 180
Dimensional stability	%	EN 1107-2	≤ 0,5
Foldability at low temperature	°C	EN 495-5	-25
Welding peel resistance	N/50mm	EN 12316-2	≥ 80
Reinforcement (100% PES)
Construction (warp, weft)	thr/cm		2,8
Weight	g/m2		93
Fabric	Tex		110
Durability	Unit	Method	Typical Value
Artificial ageing (6000h)	Grey scale	EN ISO 4892-2:2006 Method A, cycle 1 EN 20105-A02	≥ 3
Microorganism resistance	% (Weight loss)	EN ISO 846:1997 Method D	≤ 1
Bacterium Resistance (Streptoverticilium reticulum)		EN ISO 846:1997 Method C Souche : ATCC 25607	No Staining
Chlorine Resistance	Grey Scale	EN 15836-2 Annex C	≥ 3
Staining Agent Resistance	Degree	EN 15836-2 Annex D	≥ 4
Abrasion resistance		EN ISO 5470-1	Pass
Temperature resistance	°C	EN 15836-2	≤ 32
Processing	Comments
Hot Air Welding	Optimization needed depending on machine
Storage & Handling
Storage Temperature	We recommend indoor storage at room temperature (max.23°C)
Storage Time	We recommend storage time less than eighteen months after production date
Processing Temperature	Film should be stored at room temperature (max, 23°C, min. 24h) before processing

ZheJiang Hanlong New Material Co.,Ltd.
Since 2016

Zhejiang Hanlong New Material Co., Ltd is Custom PVC Light Blue Water Ripple Design Swimming Pool Vinyl Liner suppliers and Company, We focuses on continuous innovation of products and technologies and provides customers with high-quality software materials by virtue of advanced technology and strong R & D capabilities. Specializing in the production of canopy materials, tent materials, membrane structure materials, air-tight materials, luggage materials, protective materials, medical materials, TPU materials, and other high-tech new materials The company always adheres to the concept of quality service, integrity, and win-win, and is determined to become a first-class professional manufacturer of software materials in China.
