Custom PVC Fish Scale PrintPattern Swimming Pool Vinyl Liner Suppliers, Company

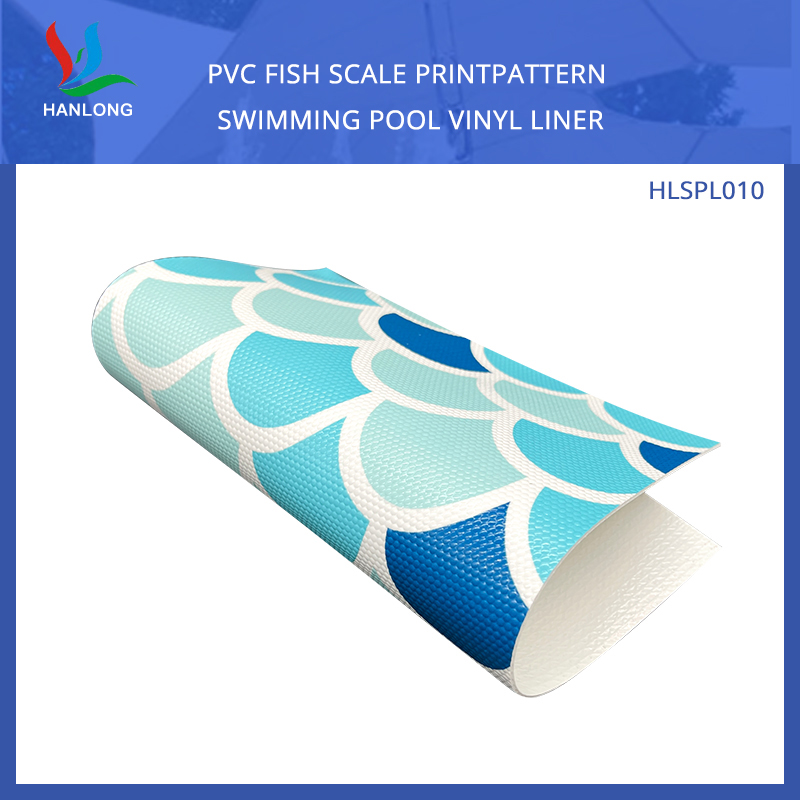

PVC Fish Scale PrintPattern Swimming Pool Vinyl Liner

PVC fish scale swimming pool vinyl lining is made of PVC material for durability and UV resistance. This lining is not only easy to install, but also fits in a variety of pool shapes, which can be easily adapted to both regular and irregular pools. The surface design uses a unique fish scale pattern to add a unique visual effect to the swimming pool. PVC fish scale pool lining has super waterproof properties and chemical resistance, making it suitable for use in residential, commercial or public swimming pools. It also has good tear resistance and aging resistance, long service life and low maintenance cost. During installation, simply cut and secure the lining to the inner wall of the pool without complicated construction.

General Properties	Unit	Method	Typical Value
Surface	g/m2	EN ISO 1849-2	1850 +/- 5%
Water Absorbtion	% (Weight)	EN ISO 62 Method 1	≤ 1
Available Width	mm		1500-1830
Physical properties	Unit	Method	Typical Value
Thickness Over Emboss	mm	EN 1849-2	1,5 +/-5%
Elongation at Break	%	EN 12311-2Method A	15 ≤ E ≤ 30
Tensile strength at Break	N/50mm	EN 12311-2Method A	≥ 1100
Peel Resistance	N/50mm	EN 12316-2	≥ 80
Tear Strength	N	EN 12310-2	≥ 180
Dimensional stability	%	EN 1107-2	≤ 0,5
Foldability at low temperature	°C	EN 495-5	-25
Welding peel resistance	N/50mm	EN 12316-2	≥ 80
Reinforcement (100% PES)
Construction (warp, weft)	thr/cm		2,8
Weight	g/m2		93
Fabric	Tex		110
Durability	Unit	Method	Typical Value
Artificial ageing (6000h)	Grey scale	EN ISO 4892-2:2006 Method A, cycle 1 EN 20105-A02	≥ 3
Microorganism resistance	% (Weight loss)	EN ISO 846:1997 Method D	≤ 1
Bacterium Resistance (Streptoverticilium reticulum)		EN ISO 846:1997 Method C Souche : ATCC 25607	No Staining
Chlorine Resistance	Grey Scale	EN 15836-2 Annex C	≥ 3
Staining Agent Resistance	Degree	EN 15836-2 Annex D	≥ 4
Abrasion resistance		EN ISO 5470-1	Pass
Temperature resistance	°C	EN 15836-2	≤ 32
Processing	Comments
Hot Air Welding	Optimization needed depending on machine
Storage & Handling
Storage Temperature	We recommend indoor storage at room temperature (max.23°C)
Storage Time	We recommend storage time less than eighteen months after production date
Processing Temperature	Film should be stored at room temperature (max, 23°C, min. 24h) before processing

ZheJiang Hanlong New Material Co.,Ltd.
Since 2016

Zhejiang Hanlong New Material Co., Ltd is Custom PVC Fish Scale PrintPattern Swimming Pool Vinyl Liner suppliers and Company, We focuses on continuous innovation of products and technologies and provides customers with high-quality software materials by virtue of advanced technology and strong R & D capabilities. Specializing in the production of canopy materials, tent materials, membrane structure materials, air-tight materials, luggage materials, protective materials, medical materials, TPU materials, and other high-tech new materials The company always adheres to the concept of quality service, integrity, and win-win, and is determined to become a first-class professional manufacturer of software materials in China.
