Custom PVC Alphabet Printing Design Swimming Pool Vinyl Liner Suppliers, Company

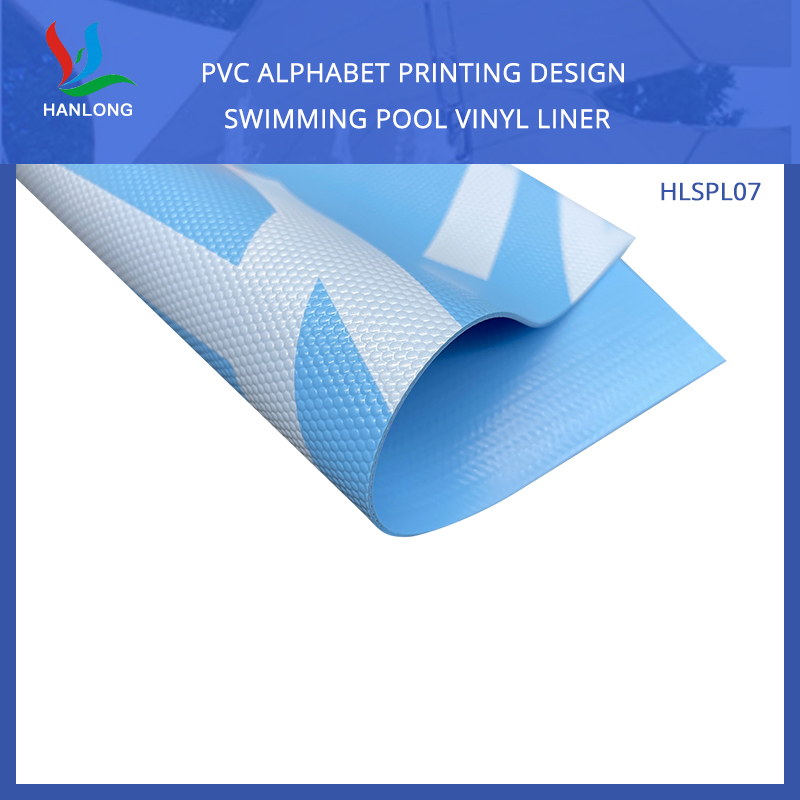

PVC Alphabet Printing Design Swimming Pool Vinyl Liner

PVC Alphabet Printing Design Swimming Pool Vinyl Liner is a swimming pool liner product that combines practicality and aesthetics. It is made of high-quality PVC material with excellent waterproof, UV and corrosion resistance. The product thickness is usually 1.2mm, 1.5mm or 2.0mm, and the size can be customized according to customer needs. The uniqueness of this liner lies in its alphabet printing design, which can add a personalized visual effect to the swimming pool and is suitable for a variety of scenarios such as home swimming pools, public swimming pools, water parks, etc. Its smooth surface and soft touch make it easy to clean and maintain, and its service life can reach more than 10 years. We provide OEM and ODM services, which can be customized according to the patterns, colors and sizes provided by customers to meet different design needs. Easy installation, excellent welding performance, and ensured sealing.

General Properties	Unit	Method	Typical Value
Surface	g/m2	EN ISO 1849-2	1850 +/- 5%
Water Absorbtion	% (Weight)	EN ISO 62 Method 1	≤ 1
Available Width	mm		1500-1830
Physical properties	Unit	Method	Typical Value
Thickness Over Emboss	mm	EN 1849-2	1,5 +/-5%
Elongation at Break	%	EN 12311-2Method A	15 ≤ E ≤ 30
Tensile strength at Break	N/50mm	EN 12311-2Method A	≥ 1100
Peel Resistance	N/50mm	EN 12316-2	≥ 80
Tear Strength	N	EN 12310-2	≥ 180
Dimensional stability	%	EN 1107-2	≤ 0,5
Foldability at low temperature	°C	EN 495-5	-25
Welding peel resistance	N/50mm	EN 12316-2	≥ 80
Reinforcement (100% PES)
Construction (warp, weft)	thr/cm		2,8
Weight	g/m2		93
Fabric	Tex		110
Durability	Unit	Method	Typical Value
Artificial ageing (6000h)	Grey scale	EN ISO 4892-2:2006 Method A, cycle 1 EN 20105-A02	≥ 3
Microorganism resistance	% (Weight loss)	EN ISO 846:1997 Method D	≤ 1
Bacterium Resistance (Streptoverticilium reticulum)		EN ISO 846:1997 Method C Souche : ATCC 25607	No Staining
Chlorine Resistance	Grey Scale	EN 15836-2 Annex C	≥ 3
Staining Agent Resistance	Degree	EN 15836-2 Annex D	≥ 4
Abrasion resistance		EN ISO 5470-1	Pass
Temperature resistance	°C	EN 15836-2	≤ 32
Processing	Comments
Hot Air Welding	Optimization needed depending on machine
Storage & Handling
Storage Temperature	We recommend indoor storage at room temperature (max.23°C)
Storage Time	We recommend storage time less than eighteen months after production date
Processing Temperature	Film should be stored at room temperature (max, 23°C, min. 24h) before processing
