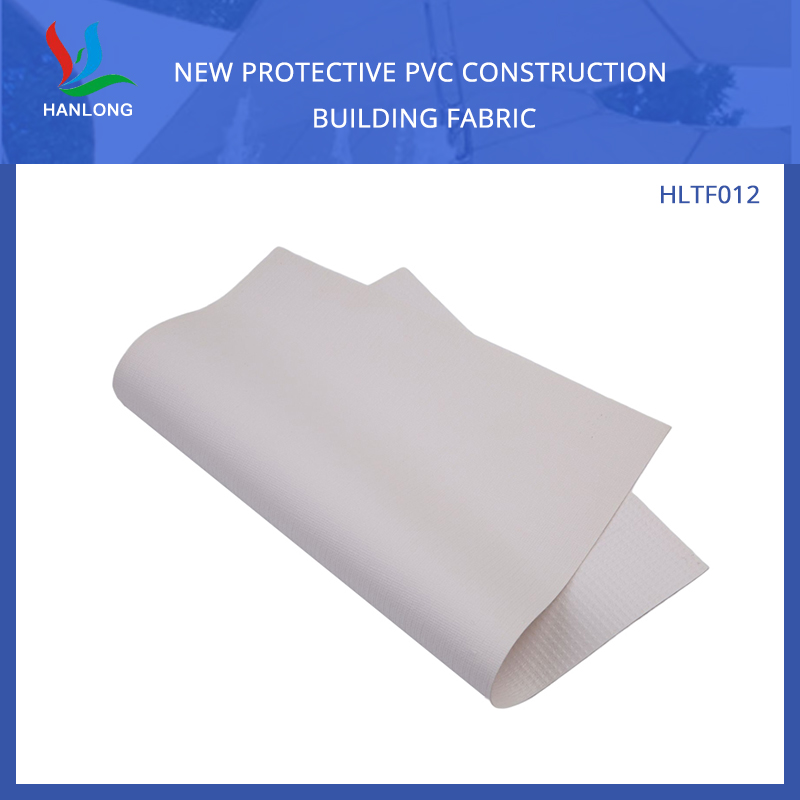

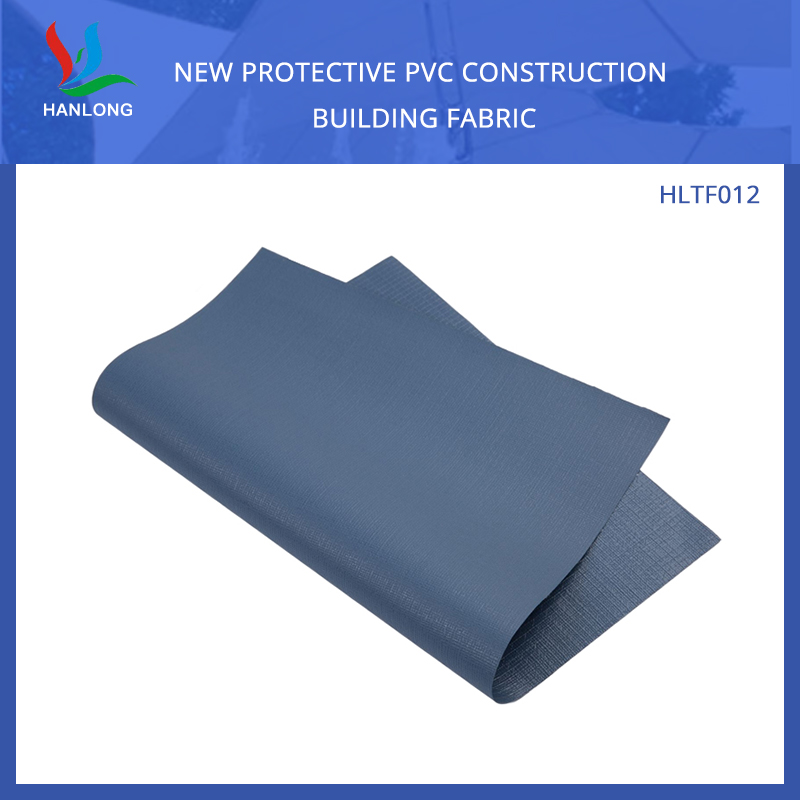

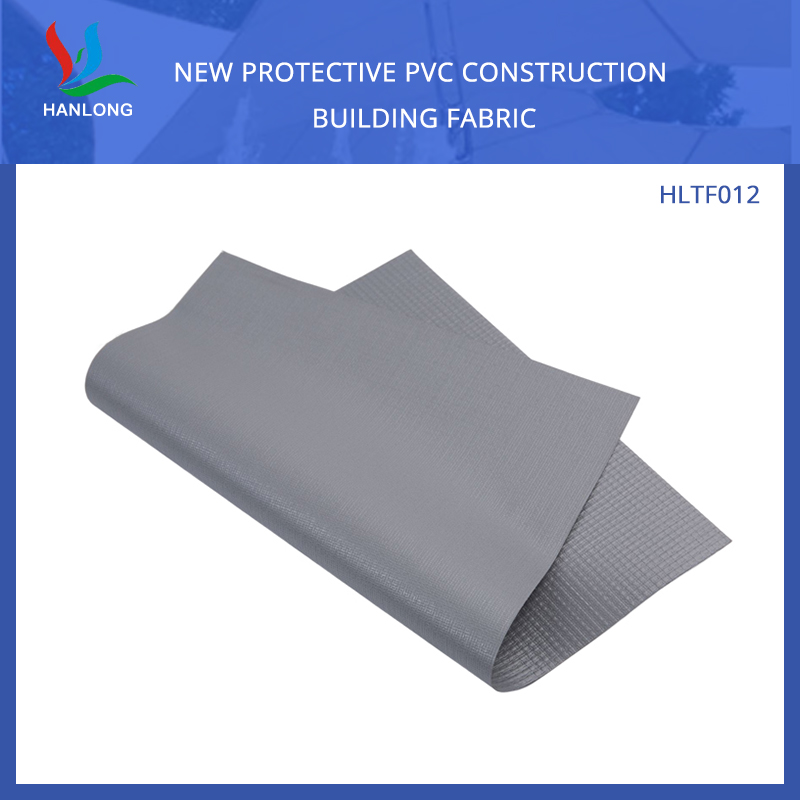

New Protective PVC Construction Building Fabric 840DX840D 9X9 340G

The New Protective PVC Construction Building Fabric 840DX840D 9X9 340G is a specialized technical textile engineered for heavy-duty shielding in industrial and architectural environments. This material is constructed using a high-tenacity polyester base cloth with an 840D yarn density in both warp and weft directions, arranged in a stable 9x9 weave pattern. The fabric is treated with a specific polyvinyl chloride (PVC) coating on both sides, resulting in a total weight of 340 grams per square meter. This configuration provides a balance of tensile strength and flexibility, ensuring effective protection against environmental factors such as UV radiation, precipitation, and wind loads. The chemical composition of the PVC coating is formulated to resist surface degradation and maintains structural stability across a wide temperature range.

Contact Us
340gsm · 9x9 weave · 840D base
Construction Scaffolding Mesh Fabric
Double-side PVC laminated · anti-wicking · UV stabilized
Dimensional stability
9x9 weave density ensures low elongation under tension, preventing fabric from sagging or losing protective shape over time.
UV and weather resistance
PVC coating contains stabilized additives that mitigate effects of long-term solar exposure, preventing brittleness and color fading.
Waterproof integrity
Non-porous coating creates complete barrier against water ingress, making it suitable for outdoor vertical and horizontal shielding.
Mechanical durability
840D high-denier polyester core provides high tear resistance, critical for construction sites and scaffolding applications.
Base Fabric Denier
840D x 840D High Tenacity Polyester
Weave Density
9 x 9 per square inch
Total Weight
340G/m² (±10g)
Coating Type
Double-side PVC Laminated/Coated
Flame Retardancy
Available to B1/B2/M2 standards upon request
Surface Finish
Glossy or Matte with Anti-wicking treatment
Primary application scenarios
Construction scaffolding — safety netting and debris shielding to protect workers and pedestrians from falling objects and dust
Temporary building enclosures — weather protection for unfinished building structures, preventing moisture damage to internal components
Industrial covers — machine covers, equipment tarpaulins, and temporary storage partitions in warehouses
Truck and logistics tarps — lightweight side curtains or cargo covers for short-haul transportation requirements
Storage conditions
Store rolls in horizontal position in cool, dry environment. Avoid direct contact with concrete floors; use pallets to prevent moisture accumulation at bottom of roll.
Cleaning procedures
Clean surface using soft brush and neutral soap solution. Avoid high-pressure water jets at close range. Do not use solvent-based cleaners that degrade PVC chemical bond.
Folding and creasing
While fabric is flexible, permanent creasing can be minimized by rolling rather than folding for long-term storage.
Installation notice
Ensure all attachment points and grommets are reinforced. Fabric should be tensioned evenly to distribute wind loads across 9x9 weave structure.
Material compatible with hot-air welding and high-frequency equipment. Flame retardant grades available upon request.
  • Benefit Description:

  • ► Blockout Performance Available.

    ► Surface Matt/Glossy Finish Available.

    ► Any Customizable Gram Weight Optional.

    ► Suitable Temperature From -20℃ to 70℃.

    ► Package Is Paper Tube + Craft Paper Available.

    ► Any Customized Solid Color/Printed Pattern Or Color Optional.

    ► Excellent Tensile Strength, Tear resistance, Extremely Soft Hand Feeling.

    ► UV Resistance,Waterproof, Flame Retardant, Anti-Bacterial, Anti-Mildew, Oil Resistant Available.

    ► Be Widely Sewn Or High-Frequency Welded In Various Building Out Cover.

Product Description:

Product Name

New Protective PVC Construction Building Fabric 840DX840D 9X9  340G
Item No#.

HLTF012
Brand Name
HANGLONG
Place Of Orinal
HAINING,ZHEJIANG,CHINA
Base Fabric

840D*840D 9*9
Weight/GSM

300-450G
Available Width

1-3.2M
Available Color

OEM Color
Delivery Time

20-25DAYS/20GP
Production Capacity

750-850,000SQM/Monthly
