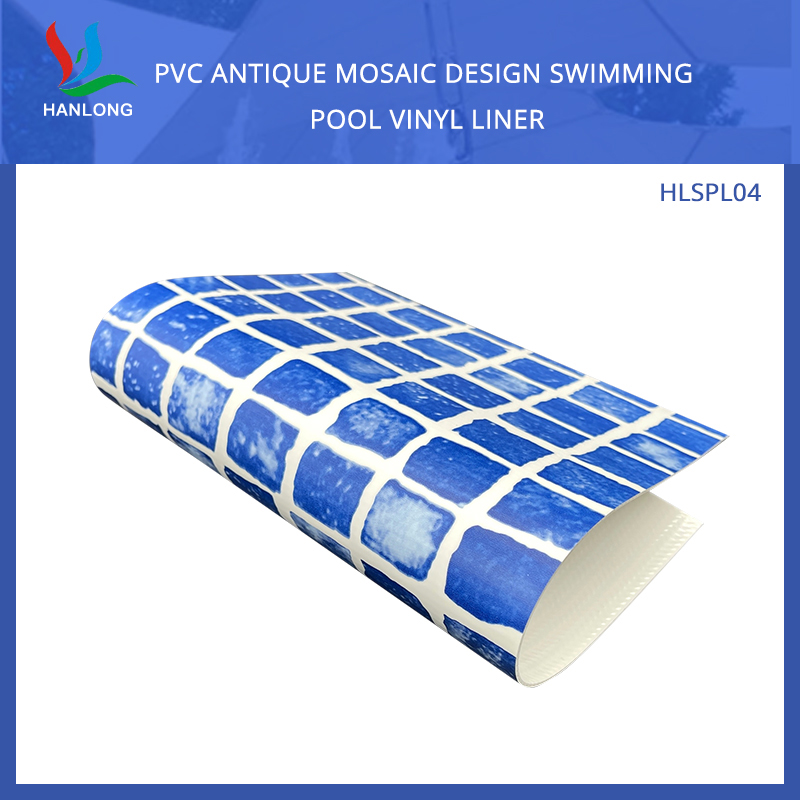

PVC Antique Mosaic Design Swimming Pool Vinyl Liner

General Properties

Unit

Method

Typical Value

Surface

g/m2

EN ISO 1849-2

1850 +/- 5%

Water Absorbtion

% (Weight)

EN ISO 62 Method 1

≤ 1

Available Width

mm

1500-1830

Physical properties

Unit

Method

Typical Value

Thickness Over Emboss

mm

EN 1849-2

1,5 +/-5%

Elongation at Break

%

EN 12311-2Method A

15 ≤ E ≤ 30

Tensile strength at Break

N/50mm

EN 12311-2Method A

≥ 1100

Peel Resistance

N/50mm

EN 12316-2

≥ 80

Tear Strength

N

EN 12310-2

≥ 180

Dimensional stability

%

EN 1107-2

≤ 0,5

Foldability at low temperature

°C

EN 495-5

-25

Welding peel resistance

N/50mm

EN 12316-2

≥ 80

Reinforcement (100% PES)

Construction (warp, weft)

thr/cm

2,8

Weight

g/m2

93

Fabric

Tex

110

Durability

Unit

Method

Typical Value

Artificial ageing (6000h)

Grey scale

EN ISO 4892-2:2006

Method A, cycle 1

EN 20105-A02

≥ 3

Microorganism resistance

% (Weight loss)

EN ISO 846:1997

Method D

≤ 1

Bacterium Resistance

(Streptoverticilium reticulum)

EN ISO 846:1997

Method C

Souche : ATCC 25607

No Staining

Chlorine Resistance

Grey Scale

EN 15836-2 Annex C

≥ 3

Staining Agent Resistance

Degree

EN 15836-2 Annex D

≥ 4

Abrasion resistance

EN ISO 5470-1

Pass

Temperature resistance

°C

EN 15836-2

≤ 32

Processing

Comments

Hot Air Welding

Optimization needed depending on machine

Storage & Handling

Storage Temperature

We recommend indoor storage at room temperature (max.23°C)

Storage Time

We recommend storage time less than eighteen months after production date

Processing Temperature

Film should be stored at room temperature (max, 23°C, min. 24h) before processing
